lucene数据存储 #

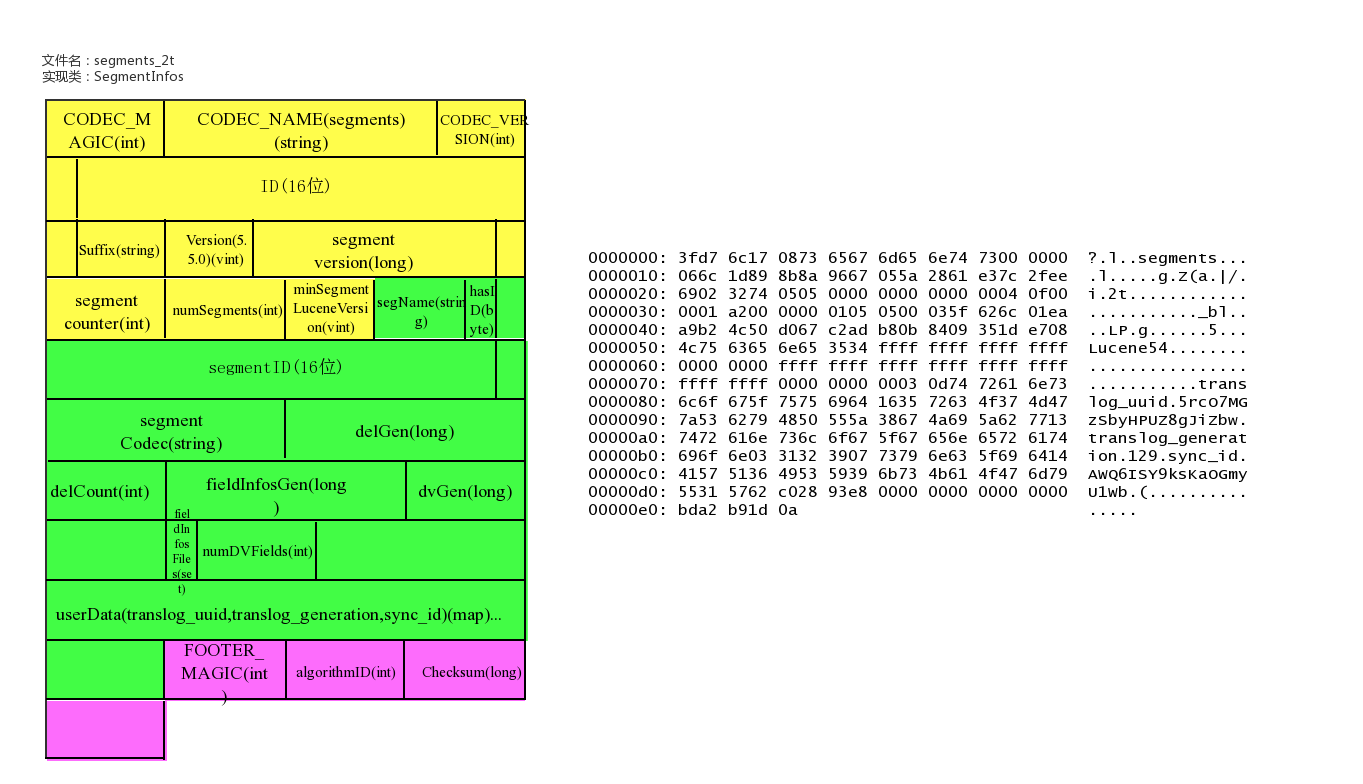

public final class SegmentInfos implements Cloneable, Iterable<SegmentCommitInfo> {
  // generation是segment的版本的概念，从文件名中提取出来，实例中为：2t/101
  private long generation;     // generation of the "segments_N" for the next commit

  private long lastGeneration; // generation of the "segments_N" file we last successfully read
                               // or wrote; this is normally the same as generation except if
                               // there was an IOException that had interrupted a commit

  /** Id for this commit; only written starting with Lucene 5.0 */
  private byte[] id;

  /** Which Lucene version wrote this commit, or null if this commit is pre-5.3. */
  private Version luceneVersion;

  /** Counts how often the index has been changed.  */
  public long version;

  /** Used to name new segments. */
  // TODO: should this be a long ...?
  public int counter;

  /** Version of the oldest segment in the index, or null if there are no segments. */
  private Version minSegmentLuceneVersion;

  private List<SegmentCommitInfo> segments = new ArrayList<>();

  /** Opaque Map&lt;String, String&gt; that user can specify during IndexWriter.commit */
  public Map<String,String> userData = Collections.emptyMap();
}

/** Embeds a [read-only] SegmentInfo and adds per-commit
 *  fields.
 *
 *  @lucene.experimental */
public class SegmentCommitInfo {

  /** The {@link SegmentInfo} that we wrap. */
  public final SegmentInfo info;

  // How many deleted docs in the segment:
  private int delCount;

  // Generation number of the live docs file (-1 if there
  // are no deletes yet):
  private long delGen;

  // Normally 1+delGen, unless an exception was hit on last
  // attempt to write:
  private long nextWriteDelGen;

  // Generation number of the FieldInfos (-1 if there are no updates)
  private long fieldInfosGen;

  // Normally 1+fieldInfosGen, unless an exception was hit on last attempt to
  // write
  private long nextWriteFieldInfosGen; //fieldInfosGen == -1 ? 1 : fieldInfosGen + 1;

  // Generation number of the DocValues (-1 if there are no updates)
  private long docValuesGen;

  // Normally 1+dvGen, unless an exception was hit on last attempt to
  // write
  private long nextWriteDocValuesGen; //docValuesGen == -1 ? 1 : docValuesGen + 1;

  // TODO should we add .files() to FieldInfosFormat, like we have on
  // LiveDocsFormat?
  // track the fieldInfos update files
  private final Set<String> fieldInfosFiles = new HashSet<>();

  // Track the per-field DocValues update files
  private final Map<Integer,Set<String>> dvUpdatesFiles = new HashMap<>();

  // Track the per-generation updates files
  @Deprecated
  private final Map<Long,Set<String>> genUpdatesFiles = new HashMap<>();

  private volatile long sizeInBytes = -1;
}

/**

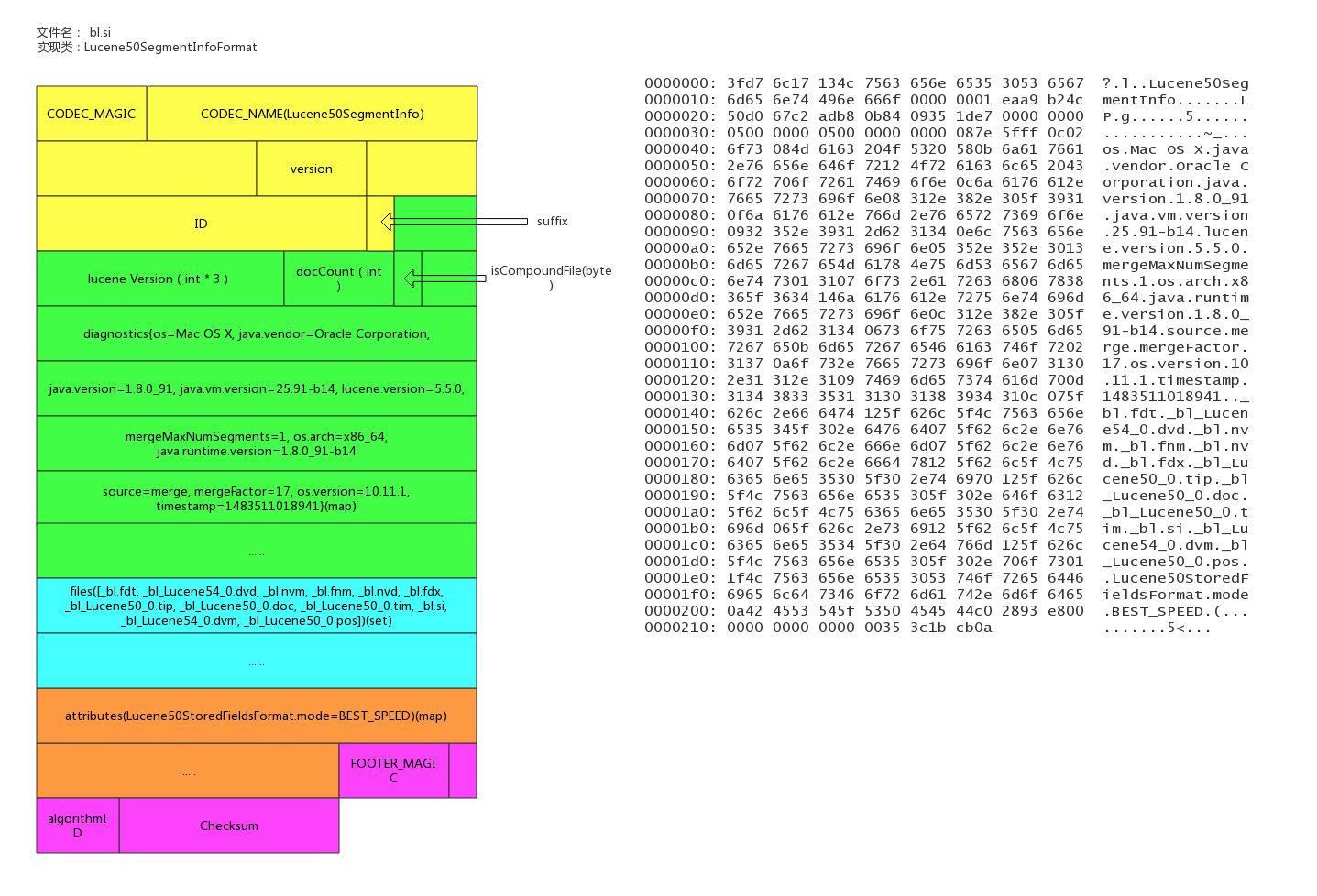

 * Information about a segment such as its name, directory, and files related
 * to the segment.
 *
 * @lucene.experimental
 */
public final class SegmentInfo {

  // _bl
  public final String name;

  /** Where this segment resides. */
  public final Directory dir;

  /** Id that uniquely identifies this segment. */
  private final byte[] id;

  private Codec codec;

  // Tracks the Lucene version this segment was created with, since 3.1. Null
  // indicates an older than 3.0 index, and it's used to detect a too old index.
  // The format expected is "x.y" - "2.x" for pre-3.0 indexes (or null), and
  // specific versions afterwards ("3.0.0", "3.1.0" etc.).
  // see o.a.l.util.Version.
  private Version version;

  private int maxDoc;         // number of docs in seg

  private boolean isCompoundFile;

  private Map<String,String> diagnostics;

  private Set<String> setFiles;

  private final Map<String,String> attributes;
}

/**

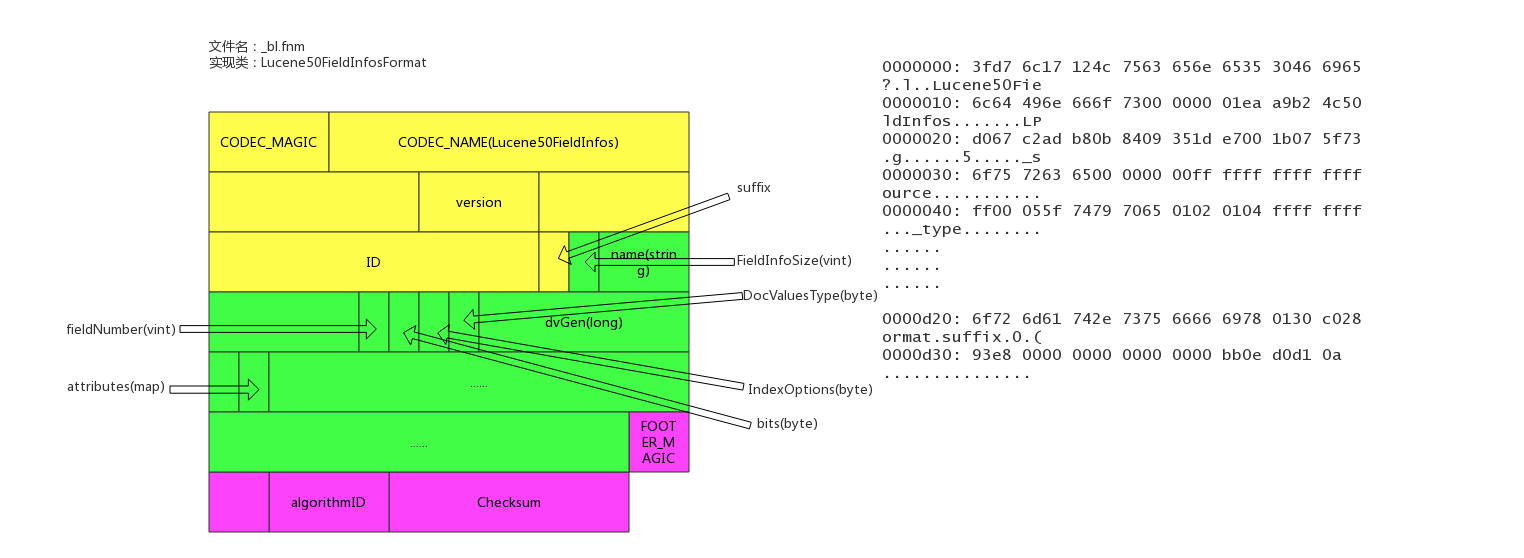

 *  Access to the Field Info file that describes document fields and whether or
 *  not they are indexed. Each segment has a separate Field Info file. Objects
 *  of this class are thread-safe for multiple readers, but only one thread can
 *  be adding documents at a time, with no other reader or writer threads
 *  accessing this object.
 **/
public final class FieldInfo {
  /** Field's name */
  public final String name;

  /** Internal field number */
  //field在内部的编号
  public final int number;

  //field docvalues的类型
  private DocValuesType docValuesType = DocValuesType.NONE;

  // True if any document indexed term vectors
  private boolean storeTermVector;

  private boolean omitNorms; // omit norms associated with indexed fields

  //index的配置项
  private IndexOptions indexOptions = IndexOptions.NONE;

  private boolean storePayloads; // whether this field stores payloads together with term positions

  private final Map<String,String> attributes;

  // docvalues的generation
  private long dvGen;
}

/**

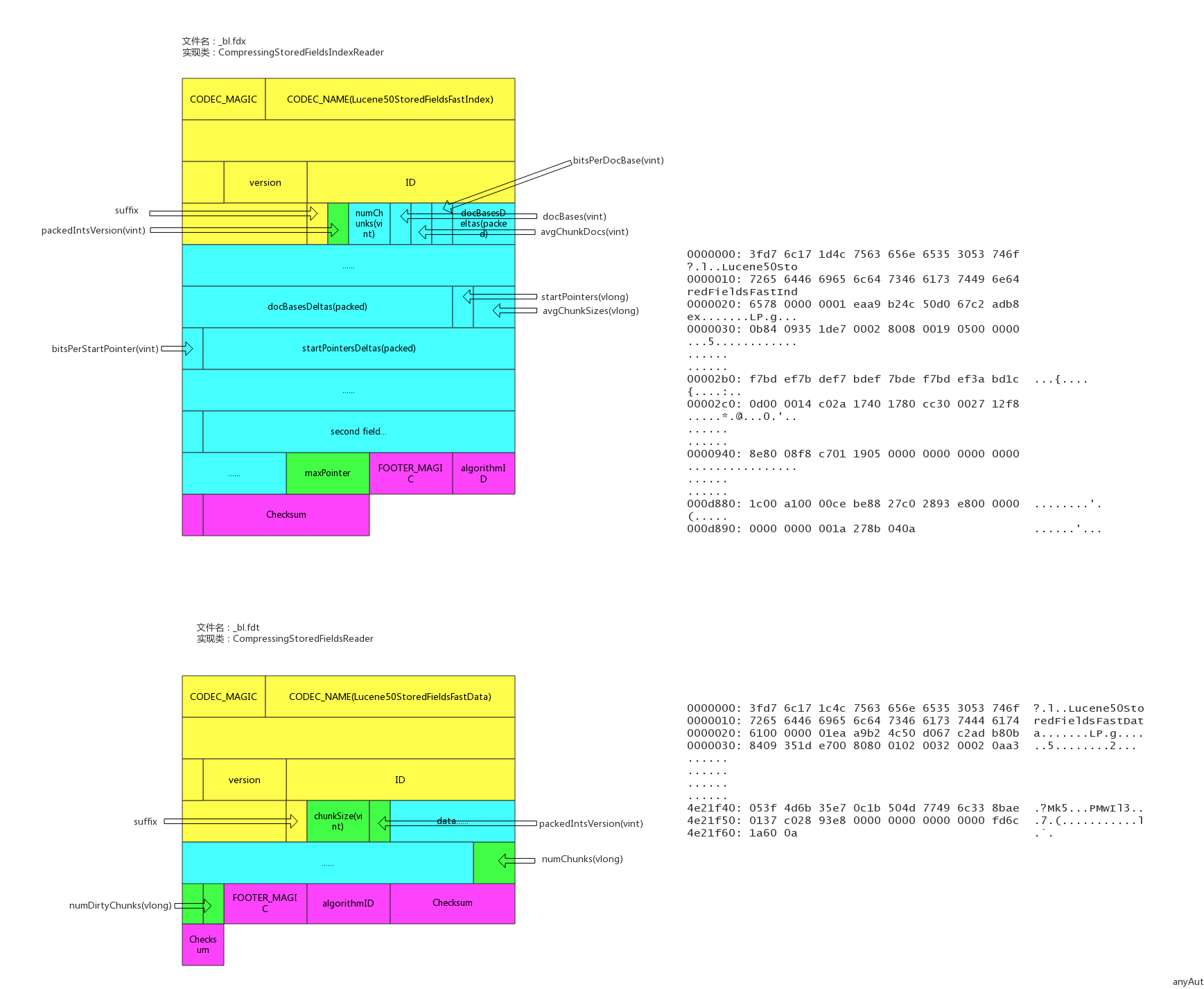

 * Random-access reader for {@link CompressingStoredFieldsIndexWriter}.
 * @lucene.internal
 */
public final class CompressingStoredFieldsIndexReader implements Cloneable, Accountable {
  private static final long BASE_RAM_BYTES_USED = RamUsageEstimator.shallowSizeOfInstance(CompressingStoredFieldsIndexReader.class);

  final int maxDoc;

  //docid索引，快速定位某个docid的数组坐标
  final int[] docBases;

  //快速定位某个docid所在的文件offset的startPointer
  final long[] startPointers;

  //平均一个chunk的文档数
  final int[] avgChunkDocs;

  //平均一个chunk的size
  final long[] avgChunkSizes;

  final PackedInts.Reader[] docBasesDeltas; // delta from the avg

  final PackedInts.Reader[] startPointersDeltas; // delta from the avg
}

/**
 * {@link StoredFieldsReader} impl for {@link CompressingStoredFieldsFormat}.
 * @lucene.experimental
 */
public final class CompressingStoredFieldsReader extends StoredFieldsReader {

  //从fdt正排索引文件中获得
  private final int version;

  // field的基本信息
  private final FieldInfos fieldInfos;

  //fdt正排索引文件reader
  private final CompressingStoredFieldsIndexReader indexReader;

  //从fdt正排索引文件中获得，用于指向fdx数据文件的末端，指向numChunks地址4
  private final long maxPointer;

  //fdx正排数据文件句柄
  private final IndexInput fieldsStream;

  //块大小
  private final int chunkSize;

  private final int packedIntsVersion;

  //压缩类型
  private final CompressionMode compressionMode;

  //解压缩处理对象
  private final Decompressor decompressor;

  //文档数量，从segment元数据中获得
  private final int numDocs;

  //是否正在merge，默认为false
  private final boolean merging;

  //初始化时new了一个BlockState，BlockState记录下当前正排文件读取的状态信息
  private final BlockState state;
  //chunk的数量
  private final long numChunks; // number of compressed blocks written

  //dirty chunk的数量
  private final long numDirtyChunks; // number of incomplete compressed blocks written

  //是否close，默认为false
  private boolean closed;
}

/**

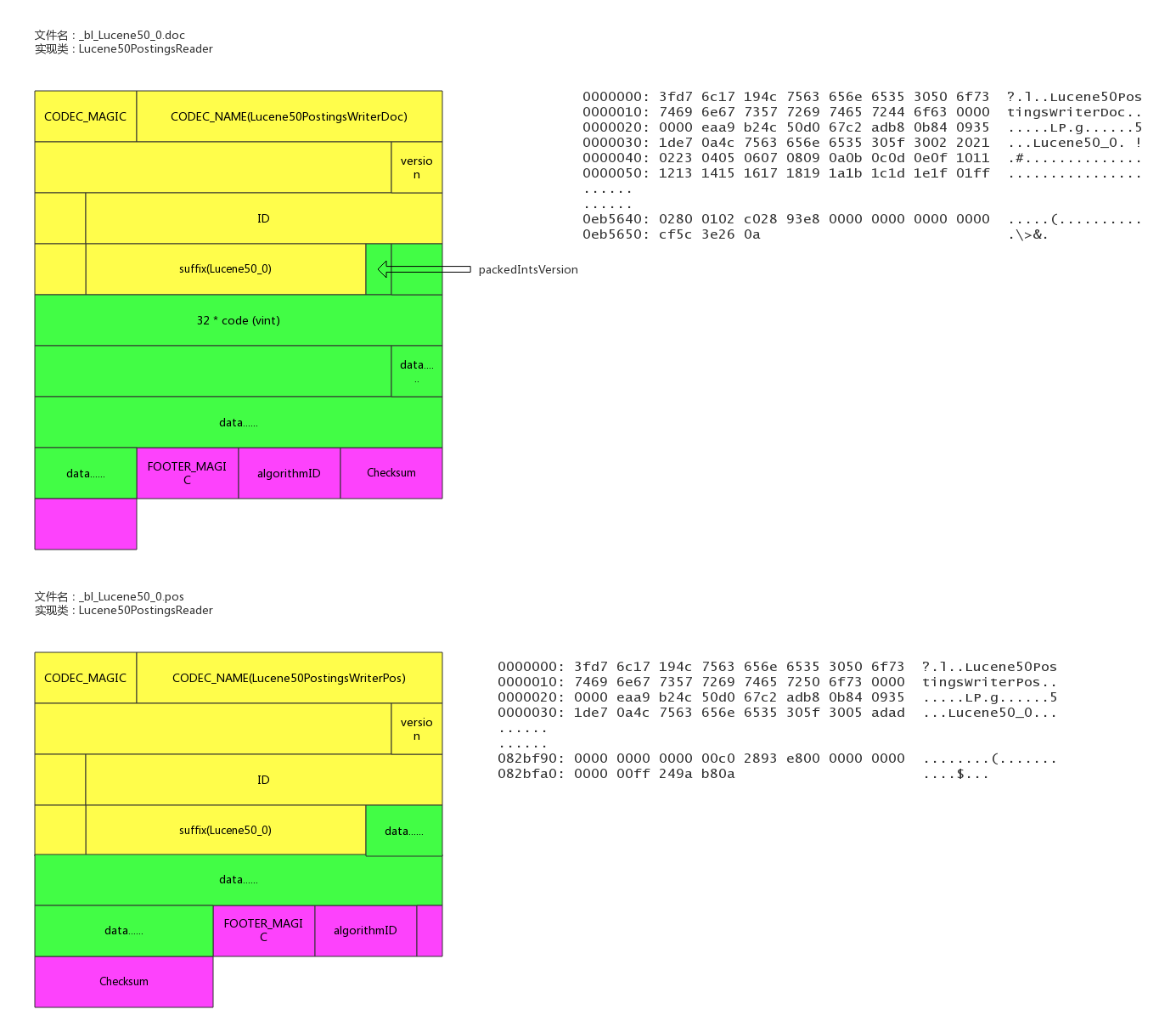

 * Concrete class that reads docId(maybe frq,pos,offset,payloads) list
 * with postings format.
 *
 * @lucene.experimental
 */
public final class Lucene50PostingsReader extends PostingsReaderBase {
  private static final long BASE_RAM_BYTES_USED = RamUsageEstimator.shallowSizeOfInstance(Lucene50PostingsReader.class);
  private final IndexInput docIn;
  private final IndexInput posIn;
  private final IndexInput payIn;
  final ForUtil forUtil;
  private int version;

  //不分词的字段使用的是该对象，基于skiplist实现了倒排链
  final class BlockDocsEnum extends PostingsEnum {
  }

  //全文检索字段使用的是该对象
  final class BlockPostingsEnum extends PostingsEnum {
  }

  //包含高级特性的字段使用的是该对象
  final class EverythingEnum extends PostingsEnum {
  }
}

/** reader for {@link Lucene54DocValuesFormat} */

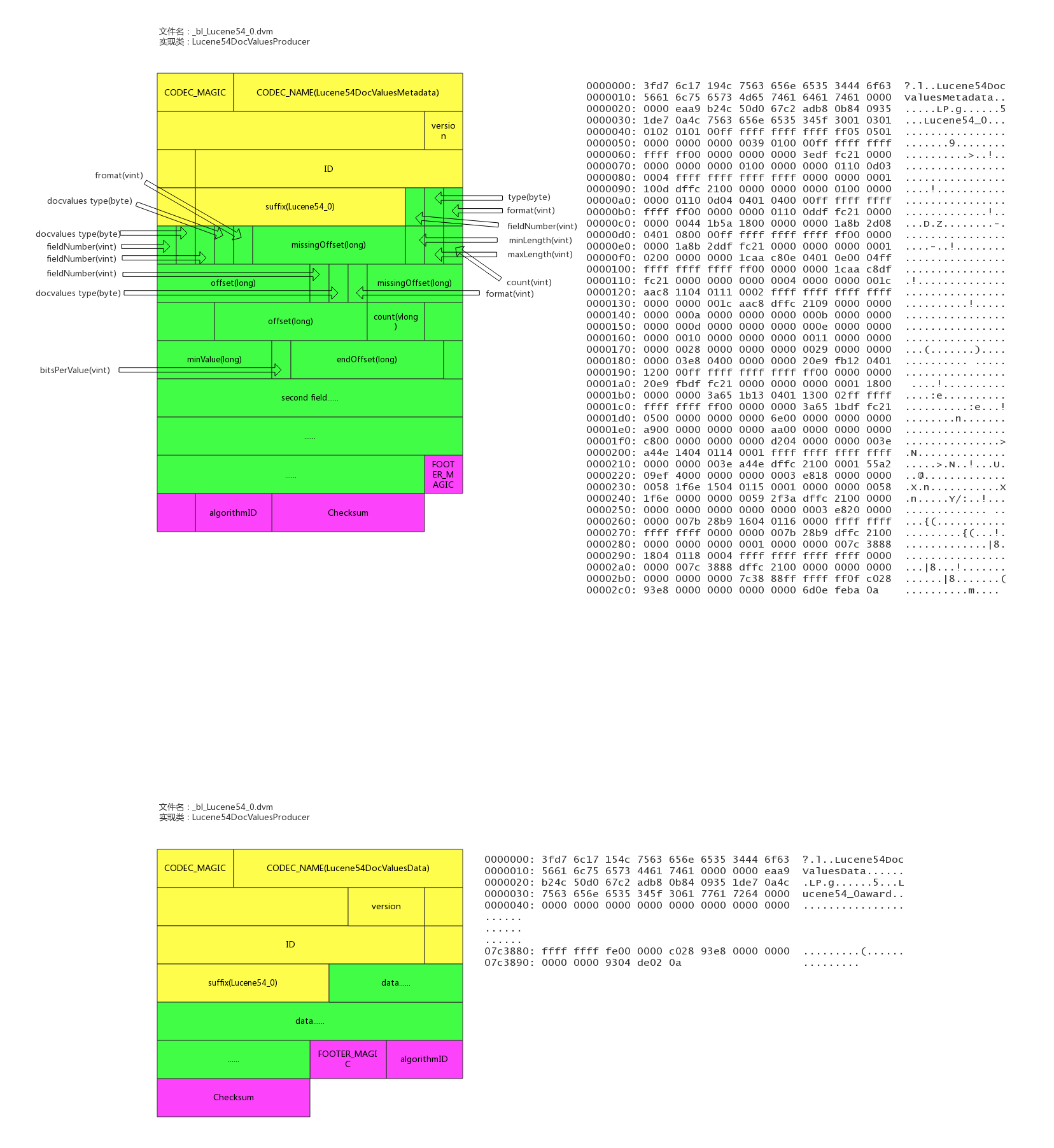

final class Lucene54DocValuesProducer extends DocValuesProducer implements Closeable {
  //number类型的field的列存列表
  private final Map<String,NumericEntry> numerics = new HashMap<>();

  //字符串类型的field的列存列表
  private final Map<String,BinaryEntry> binaries = new HashMap<>();

  //有序字符串类型的field的列存列表
  private final Map<String,SortedSetEntry> sortedSets = new HashMap<>();

  //有序number类型的field的列存列表
  private final Map<String,SortedSetEntry> sortedNumerics = new HashMap<>();

  //字符串类型的field的ords列表
  private final Map<String,NumericEntry> ords = new HashMap<>();

  //docId -> address -> ord 中field的ords列表
  private final Map<String,NumericEntry> ordIndexes = new HashMap<>();

  //field的数量
  private final int numFields;

  //内存使用量
  private final AtomicLong ramBytesUsed;

  //数据源的文件句柄
  private final IndexInput data;

  //文档数
  private final int maxDoc;
  // memory-resident structures
  private final Map<String,MonotonicBlockPackedReader> addressInstances = new HashMap<>();
  private final Map<String,ReverseTermsIndex> reverseIndexInstances = new HashMap<>();
  private final Map<String,DirectMonotonicReader.Meta> directAddressesMeta = new HashMap<>();

  //是否正在merge
  private final boolean merging;
}

/** metadata entry for a numeric docvalues field */
  static class NumericEntry {
    private NumericEntry() {}
    /** offset to the bitset representing docsWithField, or -1 if no documents have missing values */
    long missingOffset;

    /** offset to the actual numeric values */
    //field的在数据文件中的起始地址
    public long offset;

    /** end offset to the actual numeric values */
    //field的在数据文件中的结尾地址
    public long endOffset;

    /** bits per value used to pack the numeric values */
    public int bitsPerValue;

    //format类型
    int format;
    /** count of values written */
    public long count;
    /** monotonic meta */
    public DirectMonotonicReader.Meta monotonicMeta;

    //最小的value
    long minValue;

    //Compressed by computing the GCD
    long gcd;

    //Compressed by giving IDs to unique values.
    long table[];
    /** for sparse compression */
    long numDocsWithValue;
    NumericEntry nonMissingValues;
    NumberType numberType;
  }

  /** metadata entry for a binary docvalues field */
  static class BinaryEntry {
    private BinaryEntry() {}
    /** offset to the bitset representing docsWithField, or -1 if no documents have missing values */
    long missingOffset;
    /** offset to the actual binary values */
    //field的在数据文件中的起始地址
    long offset;
    int format;
    /** count of values written */
    public long count;

    //最短字符串的长度
    int minLength;

    //最长字符串的长度
    int maxLength;
    /** offset to the addressing data that maps a value to its slice of the byte[] */
    public long addressesOffset, addressesEndOffset;
    /** meta data for addresses */
    public DirectMonotonicReader.Meta addressesMeta;
    /** offset to the reverse index */
    public long reverseIndexOffset;
    /** packed ints version used to encode addressing information */
    public int packedIntsVersion;
    /** packed ints blocksize */
    public int blockSize;
  }
